High-performance Permanently Lubricated Ducts engineered for housing the sensitive nerves of global Information Technology. Precision protection for Optical Fiber Networks.

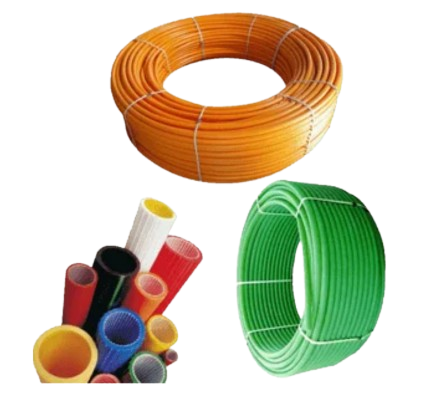

ALEX offers Permanently Lubricated (PLB) Telecom ducts featuring a specialized internal compound layer. This innovation ensures smooth conveying of optical fiber cables with extremely low friction (max 0.06 coefficient).
Manufactured from 100% virgin grade materials.
Optimal performance for the entire duct lifespan.
Available in Orange, Yellow, Red, Purple, Green, and Blue for easy network identification.
Supplied in lengths up to 1000m, drastically reducing the number of joints and installation time.
Compatible fabricated fittings designed for airtight and watertight system integrity.
Performance metrics and dimensional specifications for standard PLB Duct configurations.
| Parameter | Standard Values |
|---|---|
|
Standard Size Range |
32/26 mm, 40/33 mm, 50/42 mm |
|
Material Composition |
Superior Grade High-Density Polyethylene (HDPE) |
|
Friction Coefficient |
Max 0.06 (Internal lubricated compound) |
|
Compliance |
TEC Specification G/CDS-08/02, Nov 2004 |
|
Standard Lengths |
200m, 500m, 1000m coils (Custom lengths available) |
Precision-engineered fittings and accessories that ensure durability, strength, and seamless system integration.
Join duct lengths with airtight and watertight precision.
Seal duct ends reliably prior to cable installation.
Post-insertion sealing to maintain network integrity.
Durable hard rubber caps for transit and storage protection.
Versatile deployment across urban and rural communication environments.
Alex Pipe India Pvt. Ltd.: Leading Manufacturer in Bhiwandi, Maharashtra
We are a distinguished and efficient manufacturer of HDPE pipe and Drip Irrigation Systems, headquartered in Bhiwandi, Maharashtra.
